An advanced drainage geocomposite mat engineered for superior drainage and containment performance across multiple applications.
MATLINER® is a high-performance geosynthetic solution engineered for protection, drainage, and containment applications. Designed to handle demanding environments, it combines containment with high flow capacity drainage. MATLINER® delivers reliable performance across infrastructure, environmental, and civil engineering projects.

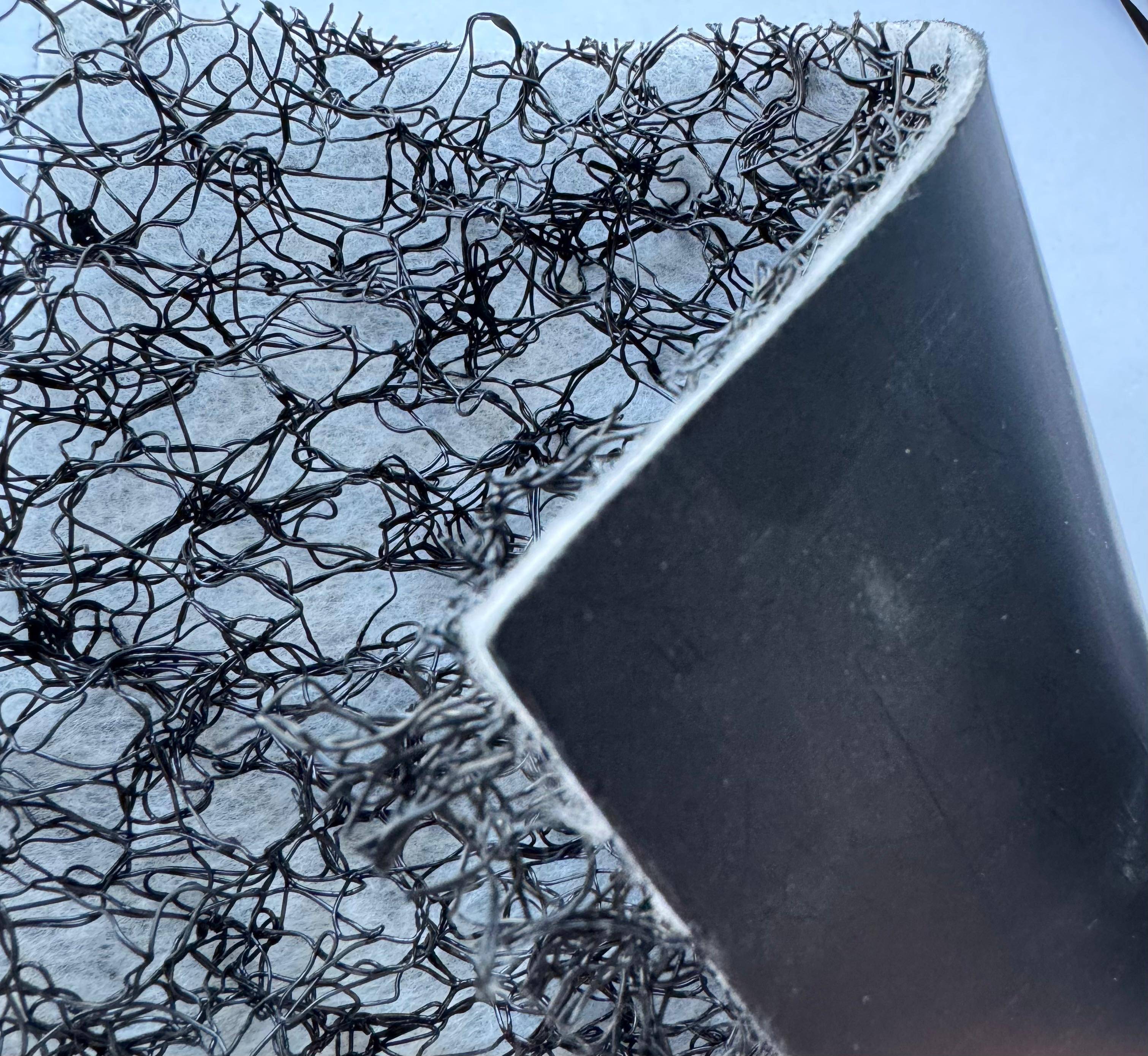

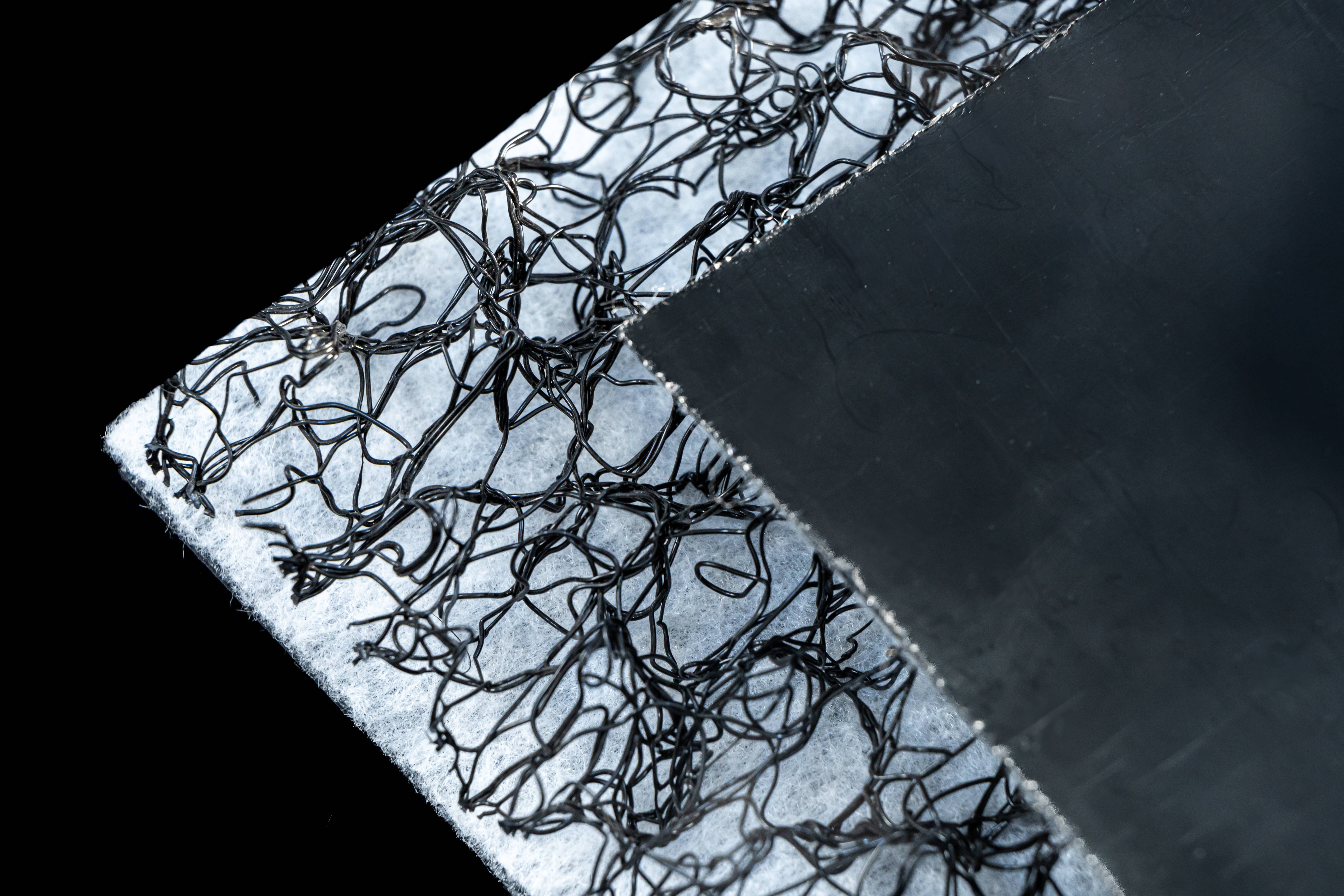

MATLINER® is a high-performance geodrain composite comprising a polypropylene (PP) extruded 3D geomat, electro-mechanically bonded with a non-woven filter fabric on the top and an impermeable membrane on one side. The 3D geomat functions as an efficient drainage layer, while the geomembrane provides a reliable containment function, making MATLINER® an ideal solution for a wide range of civil and environmental engineering applications.
Common Applications
| Properties of Geocomposite | Unit | ST |
|---|---|---|
| Thickness at 2kPa | 4.0-20.0mm | |
| In-plane water flow capacity, σ=20kPa.Soft/Rigid contact | Gradient ( i = 1.0 ) ~ 5.20 I/(m.s) | Gradient(i = 0.1 ) ~ 0.70l/lm.s) |
| Mass per unit area | 560-1260g/m2 | |
| Roll width | 2.0 to 4.0m | |
| Roll length | 25.50 and 100m | |
| Roll weight (min -max) | 30 - 510kg |
