Product Description

GRIDTEXTILE-FG® is a high-performance geogrid composite engineered to strengthen asphalt pavements, extend service life, and reduce overall layer thickness. It works by reinforcing asphalt layers, distributing loads more efficiently, and preventing cracks from propagating to the surface. Its primary function is to control reflective cracking and rutting, especially in high-traffic pavements and extreme temperature conditions. GRIDTEXTILE-FG® enhances pavement durability and prolongs pavement service life, reduces maintenance needs and offers a cost-effective solution for long-lasting roads, highways, and airport runways.

Compatible with all asphalt mix types

Enhances strength and durability of asphalt layers

Greatly reduces thermal and stress-induced reflective cracking

Minimizes rutting and deformation under high temperatures

Offers exceptional resistance to abrasion, UV exposure, chemicals, and environmental stressors

Prolongs service life and performance of pavements built on weak foundations

Can reduce required thickness of asphalt pavement

Reduces maintenance frequencies

Recyclable, lightweight, and easy to install

Cost-efficient with high return on investment

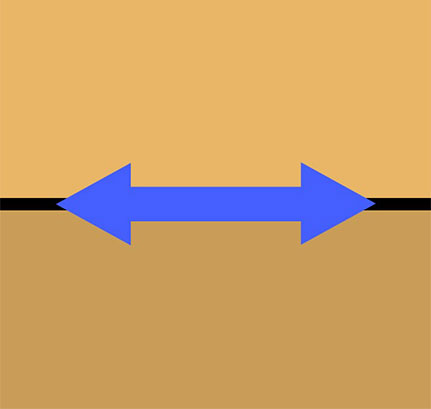

Reinforcement and Control of Reflective Cracking
Reinforcement and Control of Reflective Cracking
Separation
Separation

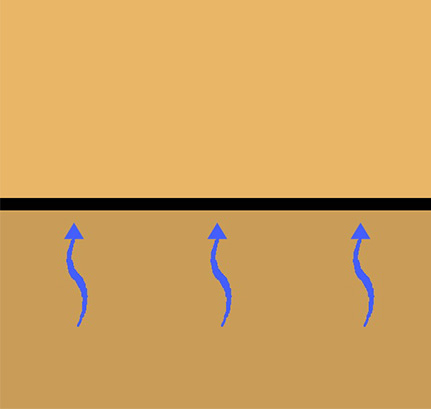

Filtration
Filtration

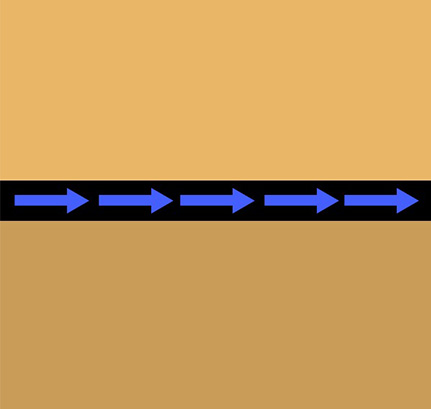

Drainage
Drainage

Common Applications

Common Applications

  • Rehabilitation and repair of distressed asphalt pavements
  • Pavement life extension in highways, roads, and bridges
  • Rutting reduction in high-traffic pavements and loading zones
  • Asphalt overlay reinforcement for parking lots and bridge decks
  • Service life improvement in pavements with weak foundations

Basic Product Specifications

Properties of Geocomposite Unit ST
Max.TensileStrergth-MD//CMD 50/50kN/m 100/100kN/m
Young's moduulus of geogrid 76GPa
Elongation at Max. Tensile Strergth-MD//CMD 3% / 3%
Aperture size 12.5 x 12.5 ard 25 x 25 mm
Rollwidth 2.0,4.0 and 5.0 m
Roll length 100 m
Roll Weight (min - max) 90 - 350kg
