Product Description

GRIDTEXTILE® is an advanced geogrid composite engineered to provide reliable soil reinforcement and stabilization across a wide range of civil engineering applications. Designed to improve load-bearing capacity and distribute stresses efficiently, it enhances the performance of weak subgrades, slopes, embankments, and foundations. By combining the geogrid's tensile strength and aggregate interlocking capabilities with the geotextile's filtration and separation functions, it creates a system that provides lateral restraint to the aggregates, preventing displacement, enhancing stability and load-distribution. GRIDTEXTILE® improves the soil’s shear resistance, reduces settlement, and extends the service life of pavements, unpaved roads, slopes and embankments, reinforced soil walls, etc.

Inquire Now

Product Benefits

Enhances soil and pavement strength

Minimizes material use by optimizing thickness

Product Function

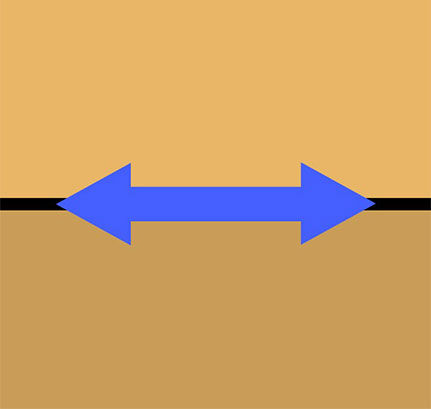

Reinforcement
Reinforcement

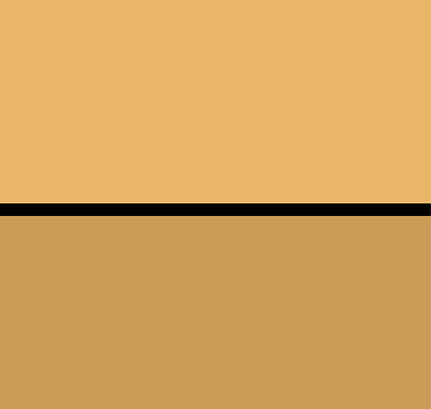

Separation
Separation

Common Applications

Common Applications:

  • Differential settlement control in weak subgrades
  • Base and subgrade stabilization for roads, highways, and very soft soils
  • Reduction of aggregate base and sub-base thickness in pavements
  • Railway ballast reinforcement and stabilization
  • Basal reinforcement of embankments over soft sabkha soils
  • Engineered backfill stabilization for retaining structures
  • Stabilization of load transfer platforms over piles and temporary crane working platforms
  • Reinforcement of slopes, retaining walls, and foundations
  • Ground support for access roads, car parks, and airport runways
  • Cut-off trenches and utility pipeline support
  • Soil Reinforcement in MSE Walls.

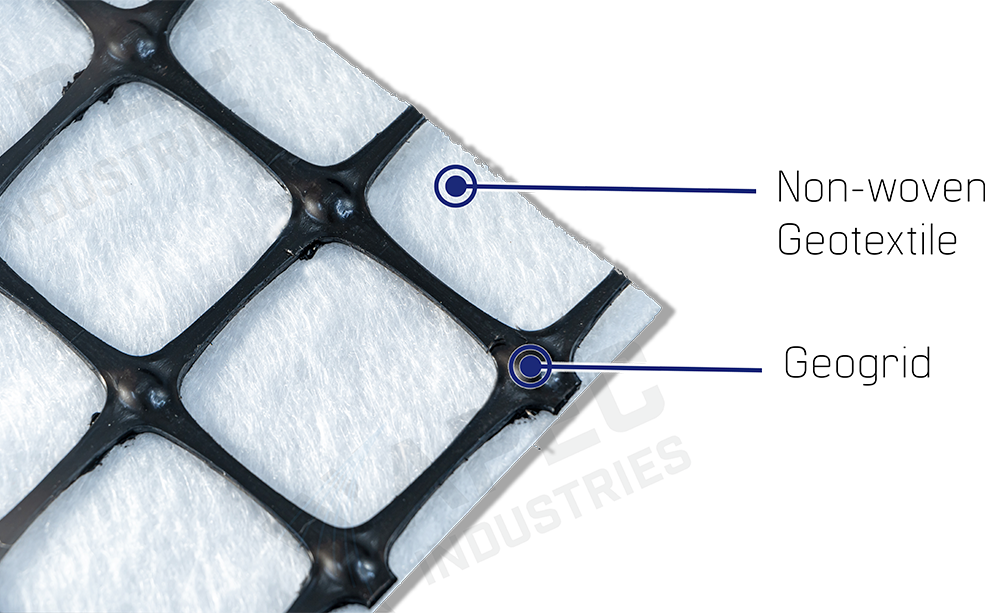

What makes GRIDTEXTILE ® better than separate geotextile and geogrid layers?

Saltstop Illustration 1

Basic Product Specifications

Properties of Geocomposite Unit ST
Max. Tensile Strength (MD/CMD) kN/m 20/20, 30/30, 40/40
Tensile Strength @ 2% strain kN/m 7/7, 10.5/10.5, 14/14

Frequently Asked Questions

GRIDTEXTILE is designed for long-term performance, with a typical service life exceeding 100 years when properly installed and covered. Its durability is enhanced by resistance to biological degradation, chemicals, and UV (if protected).

More FAQs

Learn More

Get a Free Design Recommendation
